The h bridge is a circuit which can drive a dc motor in forward and reverse. R3 is called the bridge resistor take a look at the circuit above if you look at the upper part of r3 resistor wherein r1 r2 and r3 are all connected together.

How To Calculate Mosfets Gate Resistor Electrical

Do H Bridge Resistor Values Need To Be Calculated Or Can

Dc Motor Driving Using H Bridge

Endgroup harry svensson dec 25 18 at 1656.

Resistor h bridge. Gnd is the negative end of the battery. The half h bridge type is commonly abbreviated to half h to distinguish it from full full h h bridges. But in this design i think that i will have to use another driver circuit like l298 motor driver ic since above transistors needs higher base currents and as they are in terms of amperes.

If i were to place a motor across the leads then based on the motors load i would have a rough idea via the datasheet of that motor. You will notice a new arrangement of connection. Unless you use a resistor and dampen the ringing.

This particular ic the l298 has a per bridge limit of 2a so i know the upper limit. They allow for forward and reverse motion of the motors. Given the below h bridge how do you calculate the current through the conduction paths.

Another common variation adding a third leg to the bridge creates a three phase inverter. Vdc is the positive end of the battery. Imagine an h bridge where the gates are oscillating very fast youre essentially shorting the transistors across vdd and gnd with the ringing and you are making a very noisy output.

By connecting a resistor to either vdc or gnd it turns on or off the corresponding transistor. This require a 220 ohm resistor. Now you wish the pass 2amps through the collector.

A h bridge circuit made of tip3055 and tip2955 is used for the motor drive since the motor needs somewhat higher ampere rate. How to build an h bridge circuit with transistors. The voltage drop across the base resistor is still 44v but you now need 20ma of base current.

The primary benefit of the circuit is its ability to provide extremely accurate measurements in contrast with something like a simple voltage divider. The half bridge is used in some switched mode power supplies that use synchronous rectifiers and in switching amplifiers. Therefore the motor can be utilized with its full bidirectional capability.

You can see the the base resistor sets or limits the current flowing through the base and the voltage drop across the resistor is the same regardless of the current. This is easily demonstrated by applying a 9 volt battery to the leads of a small motor and then switching the terminals to change directions. A wheatstone bridge is an electrical circuit used to measure an unknown electrical resistance by balancing two legs of a bridge circuit one leg of which includes the unknown component.

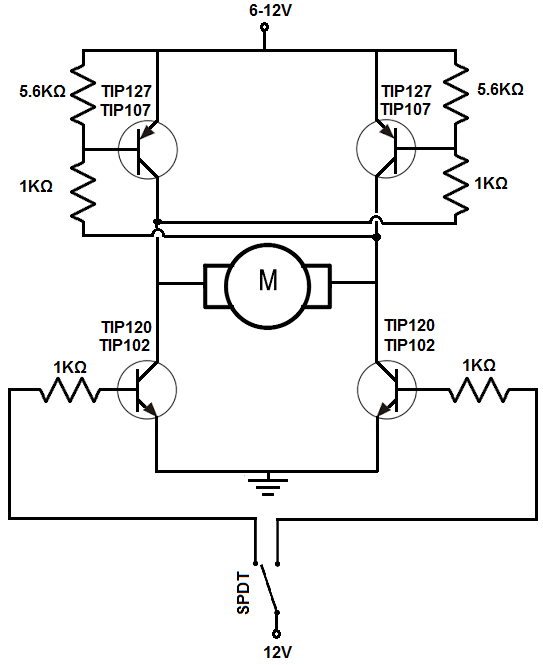

The resistors are the inputs that control the h bridge. The motor direction is changed by switching the polarity of the voltage in order to turn the motor one way or the other. In this circuit we will show how to build an h bridge circuit with transistors.

An h bridge is a circuit that is used primarily to control motors.
